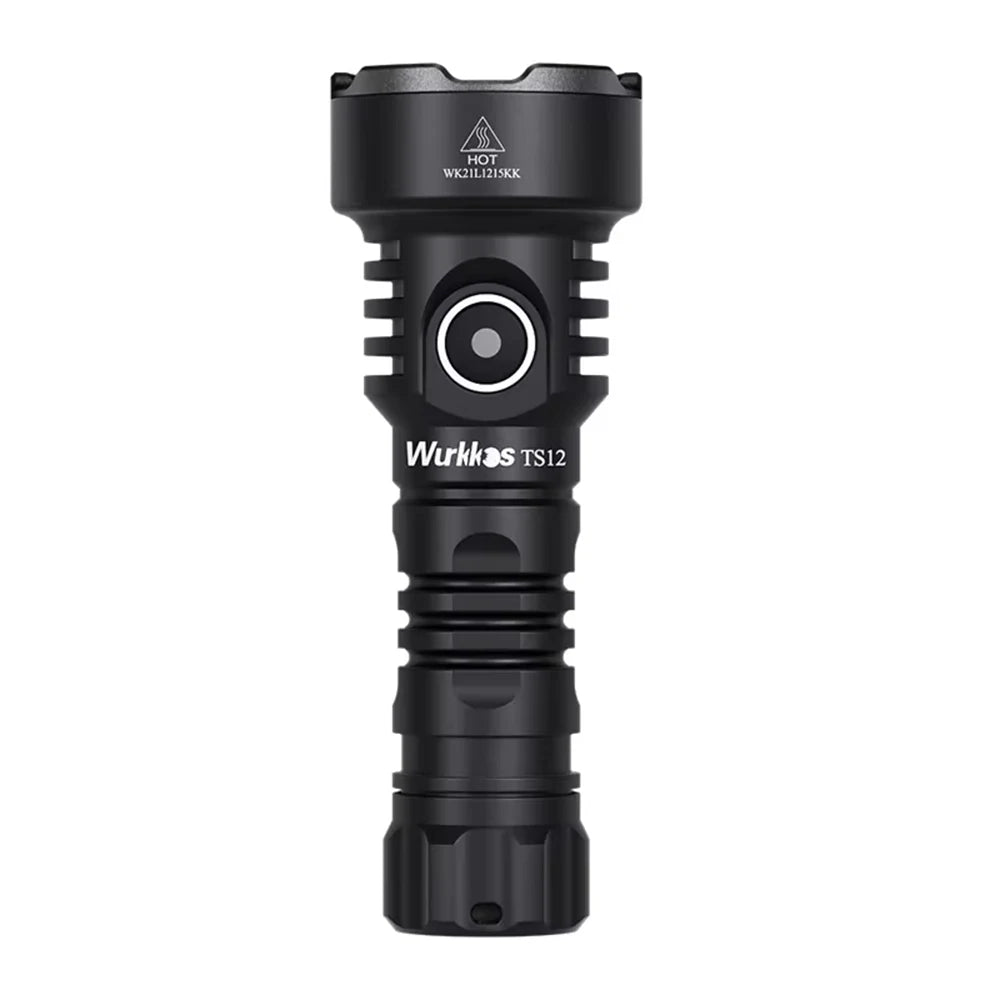

Wurkkos TS12

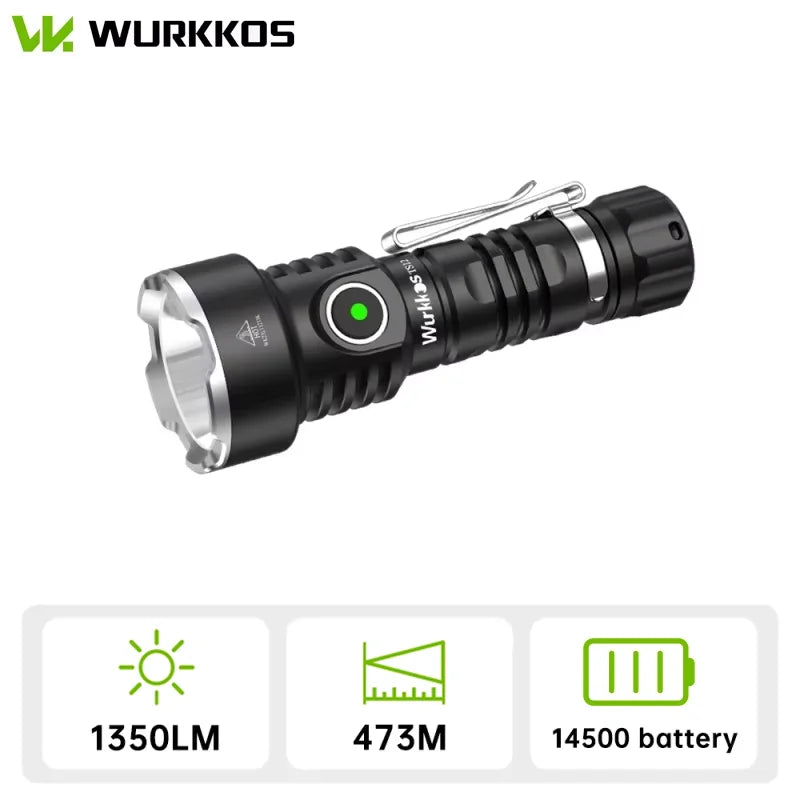

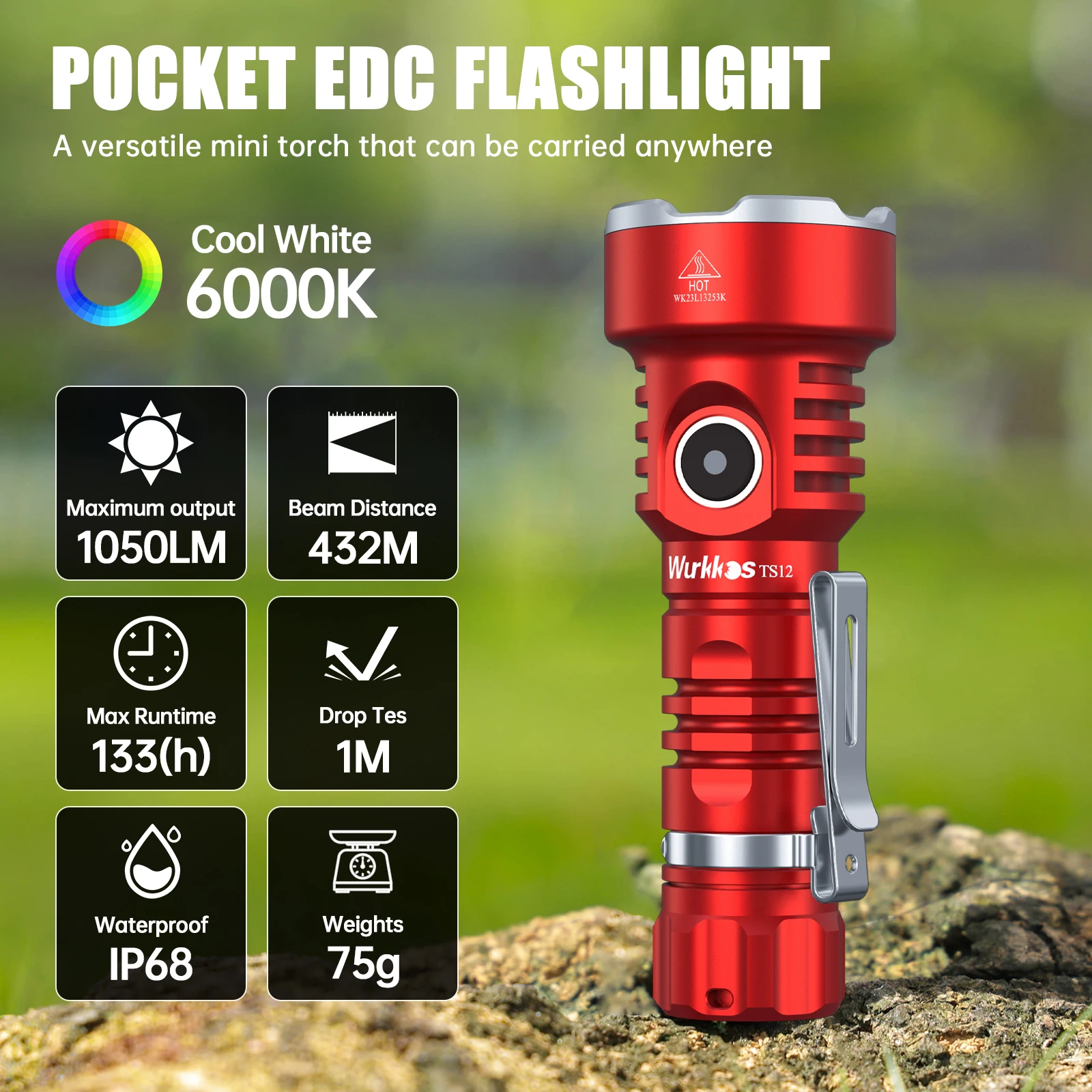

Wurkkos TS12 is a mini powerful EDC flashlight for indoor use and outdoor activities like camping, hiking, finishing, emergency etc. Power by a 14500 rechargeable Li-ion battery, unique tiger head design with Bezel. Simple User interface with both stepped modes and ramping, friendly to everybody. What’s more, it is a long range flashlight, delivers a maximum output of up to 1050lumens with a maximum range of 432meters. It will be your reliable partner for outdoor activities or daily use.

Specifications

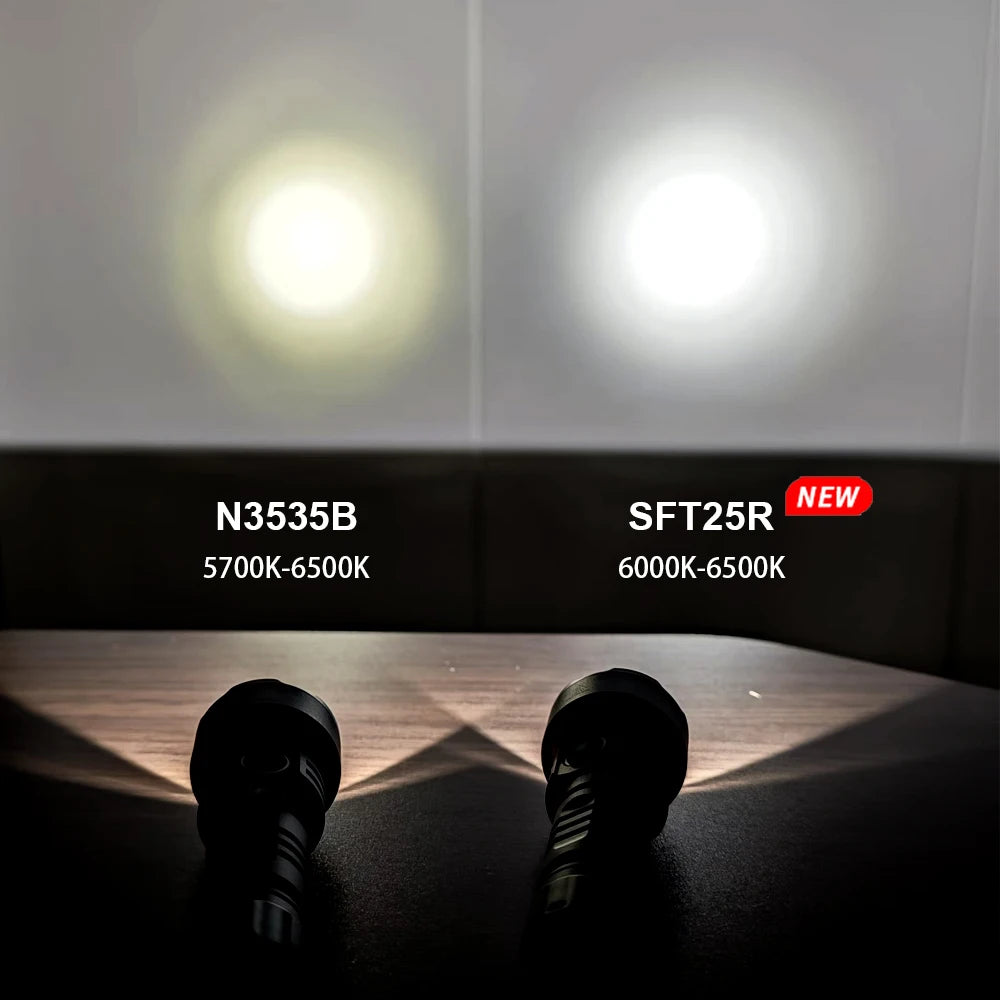

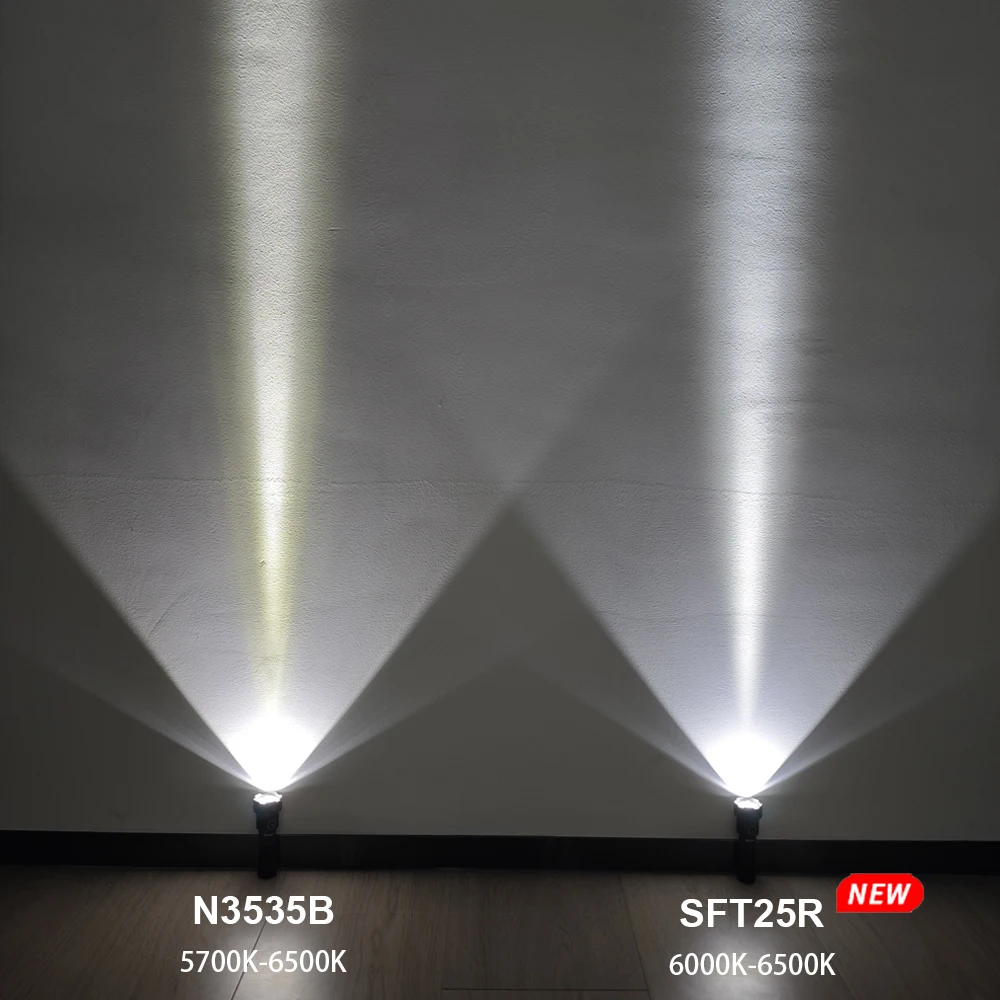

☀Emitter: SFT25R LED

☀Operating voltage: 3.0V – 4.2V

☀Battery options: 1x 14500

☀Dimension: 90.8mm (length) x33mm (head diameter)

☀Weight: 75 grams (without battery)

☀Flashlight body: Aerospace grade 6061 grade aluminum alloy

☀Water resistance i.a.w. IP68

☀Automatic Step down: Turbo mode steps down to High mode automatically to prevent overheating.

☀Electronic reverse polarity protection from improper battery installation

☀Advanced Temperature Regulation (ATR) technology

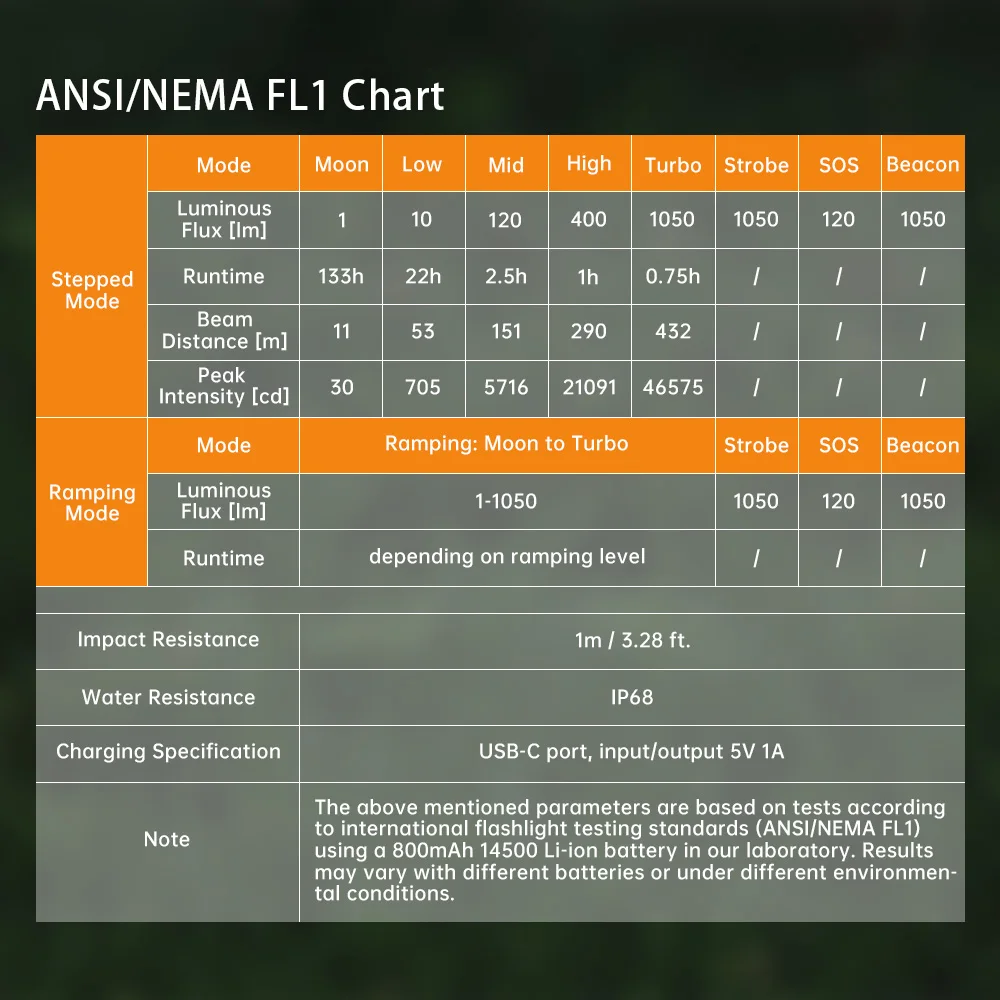

ANSI/NEMA FL1 Chart

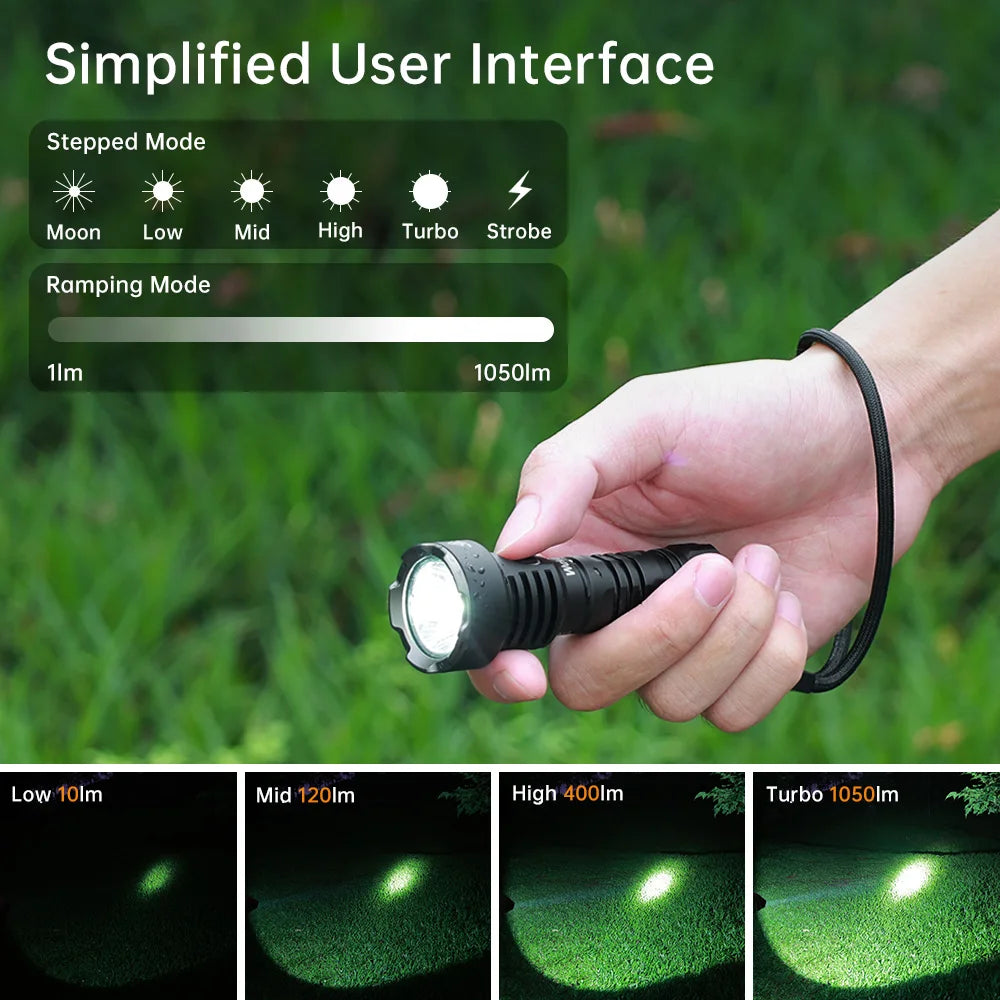

Operation Instructions

Group 1: Stepped modes (default)

☀Power on/off: From OFF single click to turn ON.

☀Brightness adjustment: In the power-on state, long press the switch to adjust the brightness cycle (Low – Mid – High). Single click to turn OFF.

☀Moon Mode: From OFF, press 1 second to Moon mode, then keep press and hold, to cycle through stepped modes.

☀Turbo mode: Double click to activate Turbo mode. Single click to return to the previously used mode.

☀Flashing mode: Quickly click 3 times to enter the strobe, double-click the switch to cycle adjustment, strobe→SOS→beacon. Click to return to the previous state.

Group 2: Ramping mode

☀Power on/off: From OFF single click to Turn ON.

☀Brightness adjustment: Press and hold the switch to change brightness. Ramping changes its direction when the button is pressed again within 1.5 seconds. The light flashes once when it reaches the lower or upper end of the ramp. From ON single click to turn OFF again.

☀Turbo mode: Double click to activate Turbo mode. Another double click to cycle Moon-Turbo, single click to return to the previously used mode.

☀Moon Mode: From OFF, press 1 second to Moon Mode, then keep press will adjust brightness.

☀Flashing mode: Quickly click 3 times to enter the strobe, double-click the switch to cycle adjustment, strobe→SOS→beacon. Click to return to the previous state.

Toggle between Group 1 and Group 2

When ON 4 clicks to switch between both mode groups. Two flashes will confirm the mode group change.

Electronic Lockout
